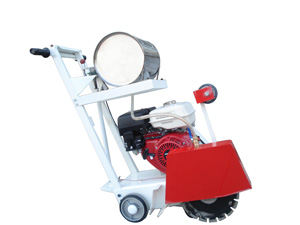

Floor Saw VLD12/14/16: suitable for cutting asphalt or concrete of steel or cobble structures. The concentric design of the steel box and outer spheric seating of the bearings reduces vibration greatly, ensures the output of the water from the conjointed water tank, prolongs the service life of the blades. the protective device of the bearing keeps the dust out.
Features: 1.Convenient movement with wheels. 2.Fixed steel bracket ensures straight in line cutting without vibration, which also prolongs the service life of the blades. 3.Equipped with imported high quality bearings to ensure the long service life. 4.Reasonable design of the length of the handle to increase the comfort for holding. 5.Easy adjustment for the cutting depth with lifting or descending. 6.Adjustable height of the blade guard to make it convenient for the change of blades 7.Stainless steel water tanks ensure the optimal spray of water, easy to disassemble, do not rust or erode. 8.Better power output with stable throttle control system.
Model |
VLD12/14/16 |
Type of engine |
Honda (Robin, Yamaha, Kohler, or B&S available) |
Power ( horse power) |
9 or 13 |
Weight (kg) |
85 |
Maximum cutting depth (centimetre) |
17 |
Diametre of the blade shaft |
25.4 |
Blade diametre ( centimetre) |
30-45 |
Rotation direction of the blade |
downward |
Cutting depth adjustment |
by twisting the handle |
Way to advance |
push by hand |
Dimension of the water tank ( litre) |
15 |
|
